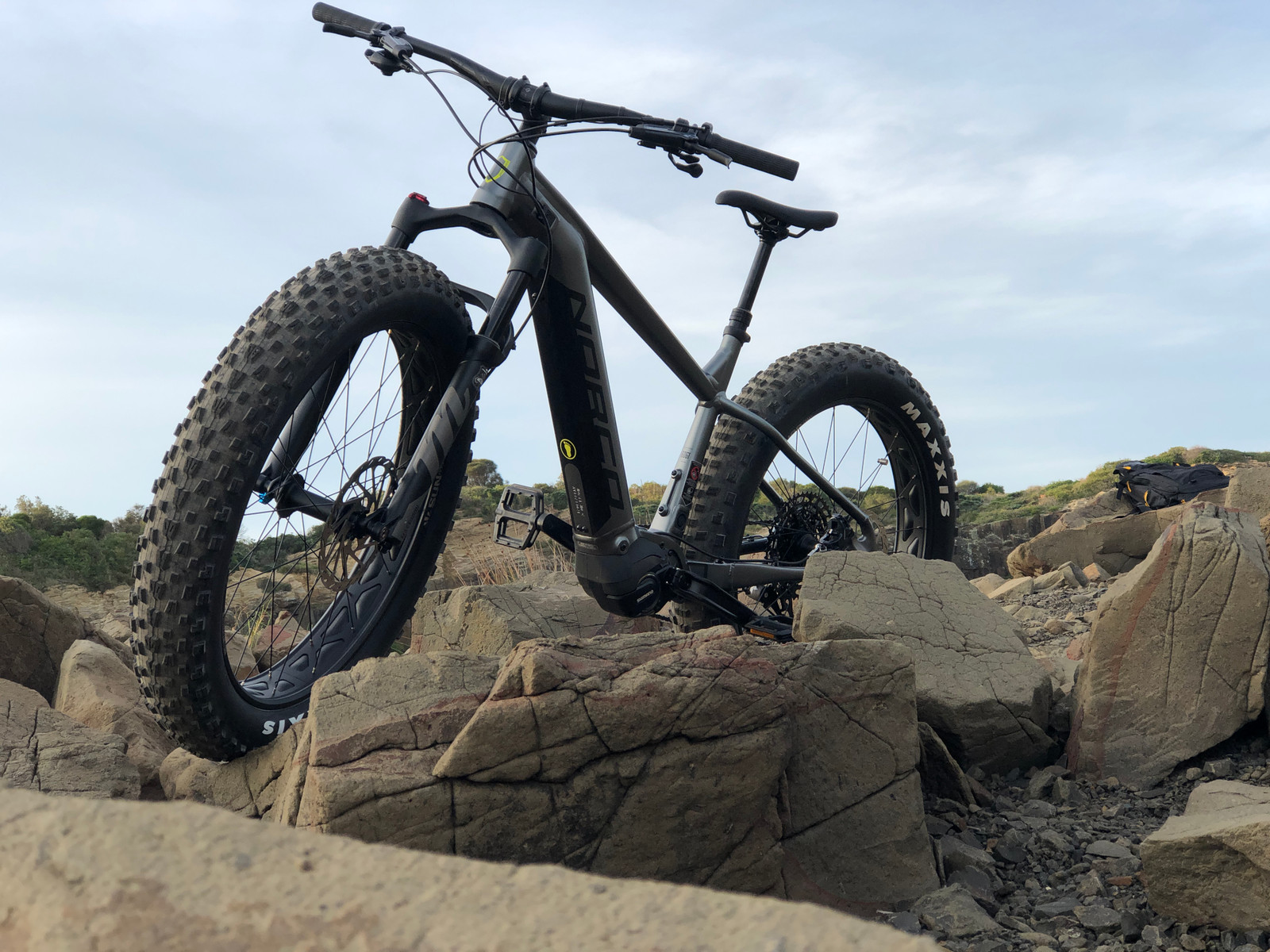

With handling built to satisfy the demands of the most discerning rider – it shreds like our world class MTBs - and its seamless integration of the latest in e-bike technology, the Bigfoot VLT 1 is built to perform on any year-round riding adventure imaginable.

Norco has developed the Bigfoot VLT 1 with thoughtful features and carefully selected components to complement its decidedly modern geometry and handling. The Manitou Mastodon Pro suspension fork offers 100mm of cold-weather-compatible travel, while matching the frame's generous clearance for the 4.8” tubeless compatible tires and rims.

The best-in-class Shimano STEPS E8000 drive unit will extend the ride and give you the push you need to get through the tough stuff. The protected seat tube charging port allows easy access and quick charging of the 630Wh battery, which we've cold-weather tested to ensure you can ride year-round with confidence.

Thanks to the features and attention to detail built-in, and your desire to ride the unridable, the Bigfoot VLT 1 is the electric fat bike that you'll forget is an electric fat bike until you realize just how far it's taken you.

SPECIFICATIONS:

FRAMESET

FRAME:Norco Bigfoot VLT, Aluminum, Boost 12x197mm Dropouts, Shimano Motor Mount

FORK:Manitou Mastodon Pro, 100mm Travel, 15x150mm TA, 51mm Offset

HEADSET:ACROS AZ-44BL Block Lock Upper, AZ-56 Lower, Zero Stack Internal

HEADSET SPACER:3x10mm, 1x5mm, 1x2.5mm, Aluminum

DRIVETRAIN

REAR DERAILLEUR:SRAM NX Eagle, 12 Speed

CASSETTE:SRAM NX Eagle PG-1230, 11-50T, 12 Speed

CHAIN:SRAM NX Eagle, 12 Speed

CRANKSET:Samox Offset Fat Crank, 165mm

PEDALS:VP Nylon Flat Pedals, 9/16"

CHAINRING:SRAM Eagle Narrow/Wide Chainring 32T, Samox 104mm BCD Offset Spider, 72mm Chainline

SHIFTER REAR:SRAM NX Eagle, 12 Speed

COMPONENTS

GRIPS:VP, Lock-On

HANDLEBAR:Norco 6061 Aluminum, 800mm Wide, 20mm Rise, 35mm Diameter

STEM:6061 Aluminum, 50mm Length, 31.8mm Clamp Diameter

SEAT POST:TranzX YSP18JL Stealth Dropper, 100mm (S) | 125mm (M) | 130mm (L/XL) Travel, 31.6mm, 1x Lever

SEAT POST CLAMP:Norco Alloy Nutted Clamp

SADDLE:WTB Volt Sport

FRONT BRAKE:SRAM Guide T, 4 Piston Hydraulic Disc, SRAM CenterLine 200mm Rotors

REAR BRAKE:SRAM Guide T, 4 Piston Hydraulic Disc, SRAM CenterLine 200mm Rotors

BRAKE LEVERS:SRAM Guide T

KICKSTAND:Ursus Wave Rear R81, Aluminum, E-Bike Rated

WHEELS

FRONT HUB:KT-M9CF, 15x150mm

REAR HUB:KT-M9CR, 12x197mm

SPOKES/NIPPLES:Shadar Stainless Steel 14g Spokes, Brass Nipples

RIMS:Sun Mulefüt 80SL, 32 Hole, 80mm Internal Width

FRONT TIRE:Maxxis Minion FBF, 26x4.8", EXO/TR, Folding

REAR TIRE:Maxxis Minion FBR, 26x4.8", EXO/TR, Folding

FRONT AXLE:Manitou Hexlock, 15x150mm TA

REAR AXLE:12x197mm TA

ELECTRIC COMPONENTS

MOTOR:Shimano STEPS E8000

BATTERY:In-Tube Battery, 630Wh Capacity

Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photos.
